Overview

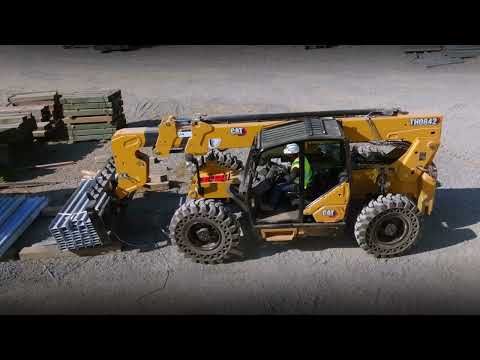

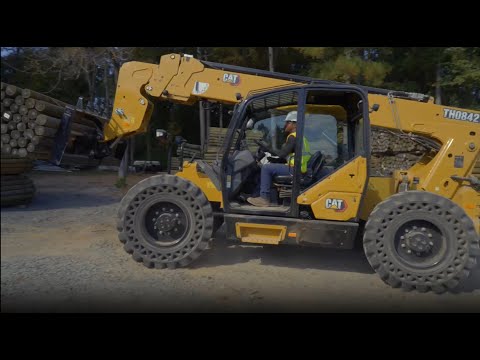

The Next Generation Cat® TH0642 Telehandler is focused on safety and ease of operation, with extended service intervals so it is ready to work when you are.
More than a machine – Cat Telehandlers are an extension of you.
Key Features
More Comfort. More Performance. More Versatility.
SAFETY
Work more confidently with the Load Stability Indication (LSI) system that delivers visual and audible alerts to the operator regarding the forward stability of the machine.
EASE OF OPERATION
Smooth, predictable operation with the pilot controlled joystick.
EXTENDED SERVICE INTERVALS
Maintenance made easy with features such as 500-hour greasing interval, 500-hour boom maintentance, 3,000-hour hydraulic oil, 6,000-hour extended life coolant, engine idle shutdown and more.
Specifications
| Model | Cat C3.6 |
|---|---|
| Emissions | Meets U.S. EPA Tier 4 Final/EU Stage V emissions standards. |
| Gross Power | ISO 14396:2002 |
| Gross Power | 74 hp |
| Displacement | 220 in³ |
| Rated Load Capacity | 6000 lb |
|---|---|
| Maximum Lift Height | 42.1 ft |
| Maximum Forward Reach | 27.6 ft |
| Frame Leveling | 10 degrees |
| Drawbar Pull - Loaded | 21064 lbf |
| Capacity at Maximum Height | 6000 lb |
| Capacity at Maximum Reach | 900 lb |
| Operating Weight | 21647 lb |
| Maximum Ground Bearing Pressure (Solid Tires) | 175 psi |
| Maximum Ground Bearing Pressure (Pneumatic Tires) | 140 psi |
| Travel Speed – Forward | 19 mile/h |
| Travel Speed – Reverse | 14 mile/h |
| Turning Radius over Tires (2-wheel steer) | 261 in |
| Turning Radius over Tires (4-wheel steer) | 156 in |
| Note | Operating Specifications, and Dimensions are based on 55 kW (74 hp) engine, pnuematic tires, open canopy, 1829 mm (72 in) standard carriage, 1829 mm (72 in) forks, full fluids, and 80 kg (176 lb) operator. |
| Enclosed Cab (with Air Conditioning) | 364 lb |
|---|---|
| Solid Tires | 1737 lb |
| Fenders (set of 4) | 119 lb |
| Auxiliary Hydraulic Flow | 14.5 gpm |
|---|---|
| Auxiliary Hydraulic Pressure | 4061 psi |
| Maximum Pump Flow | 37 gpm |
| System Operating Pressure | 4061 psi |
| Fuel Tank | 39 gal (US) |
|---|---|
| Hydraulic Tank | 24 gal (US) |
| Hydraulic System | 44 gal (US) |
| Engine Crankcase | 2.4 gal (US) |
| Transmission | 5.3 gal (US) |
| Transfer Case | 0.7 gal (US) |
| Forward | 4 Gears |
|---|---|
| Reverse | 3 Gears |
| Option (1) | 14-24 Galaxy Giraffe XLW L-2 (Air) |
|---|---|
| Option (2) | 13-24 Camso TLH 792S (Solid) |
| Option (3) | 13-24 Maxam MS709 (Solid) |
| Service Brakes | Inboard wet disc brakes on front and rear axles |
|---|---|
| Parking Brakes | Wet disc, spring applied hydraulic release (front axle) |
| Boom Down | 14.2 sec |
|---|---|
| Boom Up | 12.8 sec |
| Tele In | 13.3 sec |
| Tele Out | 13 sec |
| Height - Machine Rear | 102 in |
|---|---|
| Overall Length to Front of Carriage | 229 in |
| Overall Width - Standard Tires | 93 in |
| Wheel Base | 131 in |
| Ground Clearance | 19 in |
| Air Conditioning | The air conditioning system on this machine contains 0.68 kg (1.5 lb) of refrigerant. The refrigerant is either R134a or R1234yf. If equipped with R134a (Global Warming Potential = 1430), the refrigerant in the system has a CO2 equivalent of 0.972 metric tonnes (1.07 tons). |
|---|
| Recyclability | 97% |
|---|
| Exterior Sound | 82 dB(A) |
|---|---|
| Operator Sound | 79 dB(A) |
