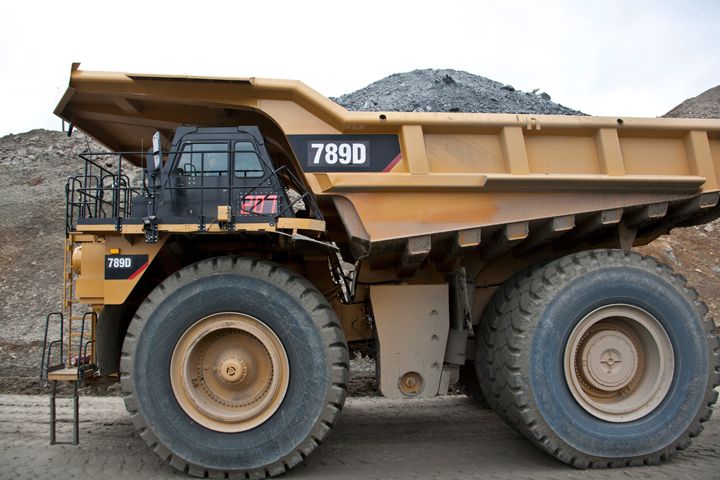

789D Mining Truck
Contact Us About This Product
Click a link to download the document:
- Nominal Payload Capacity
- 200.0 tons
- Engine Model
- 3516C - HD
- Gross Power - SAE J1995
- 2100.0 hp
- Bore
- 6.7 in
Caterpillar’s exclusive design ownership provides advantages by creating a total hauling unit that delivers the best integration of high production, availability, and payload in combination with low operating cost and long life. The Cat® 789D continues the tradition of Caterpillar’s proven 789 Truck with high productivity and lowest in class cost per ton.
Used Mining Trucks Options
View All Used Mining Trucks
Product Specs
-
Operating Specifications
- Nominal Payload Capacity
- 200.0tons
- Standard Combi Body (SAE 2:1)
- 200yd³
- Standard Dual Slope Body (SAE 2:1)
- 141yd³
- Standard Gateless Coal Body (SAE 2:1)
- 250yd³
- Standard MSD Body (SAE 2:1)
- 170yd³
- Standard X Body (SAE 2:1)
- 161yd³
- Nominal Payload Capacity
- 200ton (US)
-
Engine
- Engine Model
- 3516C - HD
- Gross Power - SAE J1995
- 2100.0hp
- Bore
- 6.7in
- Stroke
- 8.3in
- Displacement
- 4766.0in3
- Net Power
- 1969.0hp
- Gross Power
- 2100.0hp
- Rated Net Power (ISO 9249)
- 1969.0hp
- Engine Model
- Cat® 3516C HD
- Gross Power - SAE J1995
- 2100HP
- Bore
- 6.7in
- Stroke
- 8.3in
- Displacement
- 4766in³
- Net Power
- 1969HP
- Gross Power
- 2100HP
- Rated Net Power - ISO 9249
- 1969HP
-
Transmission
- Forward 1
- 7.8mph
- Forward 2
- 10.6mph
- Forward 3
- 14.4mph
- Forward 4
- 19.4mph
- Forward 5
- 26.3mph
- Forward 6
- 35.5mph
- Reverse
- 7.3mph
- Forward - 1
- 7.8mile/h
- Forward - 2
- 10.6mile/h
- Forward - 3
- 14.4mile/h
- Forward - 4
- 19.4mile/h
- Forward - 5
- 26.3mile/h
- Forward - 6
- 35.5mile/h
- Reverse
- 7.3mile/h
- Top Speed - Loaded
- 35.5mile/h
-
Final Drives
- Differential Ratio
- 2.35:1
- Planetary Ratio
- 10.83:1
- Total Reduction Ratio
- 25.46:1
- Differential Ratio
- 2.35:1
- Planetary Ratio
- 10.83:1
- Total Reduction Ratio
- 25.46:1
-
Suspension
- Effective Cylinder Stroke - Front
- 4.0in
- Effective Cylinder Stroke - Rear
- 3.5in
- Rear Axle Oscillation
- ±5.6°
- Effective Cylinder Stroke - Front
- 4in
- Effective Cylinder Stroke - Rear
- 3.5in
- Rear axle - Oscillation
- ±5.6°
-
Brakes
- Brake Surface - Rear
- 18024.0in2
- Standards
- SAE J1473 OCT90 ISO 3450:1996
- Brake Surface - Front
- 12662.0in2
- Brake Surface - Rear
- 18024in²
- Standards
- SAE J1473 OCT90 ISO 3450:1996
- Brake Surface - Front
- 12662in²
-
Body Hoists
- Pump Flow - High Idle
- 193.0gal/min
- Relief Valve Setting - Raise
- 2500.0psi
- Body Raise Time - High Idle
- 18.9Seconds
- Pump Flow - High Idle
- 193gal/min
- Relief Valve Setting - Raise
- 2500psi
- Body Raise Time - High Idle
- 18.9s
- High Idle Body Lower Time - Float
- 17.3s
- High Idle Body Lower Time - Power
- 15.6s
-
Service Refill Capacities
- Fuel Tank (standard)
- 550.0gal
- Cooling System
- 192.0gal
- Crankcase
- 77.0gal
- Brake/Hoist System
- 241.0gal
- Differential and Final Drives
- 154.0gal
- Brake Hoist System
- 241gal (US)
- Cooling System
- 192gal (US)
- Crankcase
- 77gal (US)
- Differential - Final Drives
- 154gal (US)
- Fuel Tank - Standard
- 550gal (US)
- Fuel Tank - Optional
- 1000gal (US)
- Steering System
- 50gal (US)
- Transmission Tank
- 20gal (US)
-
Weight Distributions - Approximate
- Front Axle - Loaded
- 33.0%
- Rear Axle - Loaded
- 67.0%
- Front Axle - Empty
- 46.0%
- Rear Axle - Empty
- 54.0%
- Front Axle - Empty
- 46%
- Front Axle - Loaded
- 33%
- Rear Axle - Empty
- 54%
- Rear Axle - Loaded
- 67%
- Note
- Weight distributions optimized with Cat body.
-
Steering
- Steering Angle
- 36.07Degrees
- Steering Standards
- SAE J1511 OCT90 ISO 5010:1992
- Steering Angle
- 36.07°
- Steering Standards
- SAE J1511 OCT90 ISO 5010:1992
- Turning Diameter - Front Wheel
- 90.32ft
- Vehicle Clearance - Turn Circle
- 99.18ft
-
ROPS
- ROPS Standards
- Standards
- ROPS Standards
- Standards
-
Sound
- Sound Standards
- Standards
- Sound Standards
- Standards
-
Tires
- Standard Tires
- 37.00-R57
- Standard Tires
- 37.00-R57
- Optional Tires
- 40.00-R57
-
Weights - Approximate
- Gross Machine Operating Weight (GMW)
- 715000lb
- Body Weight Range
- 23 920 kg-45 547 kg (52,850 lb-100,414 lb)
- Empty Operating Chassis Weight (EOCW)
- 218542lb
- Rated Gross Machine Weight
- 715000lb
- Chassis Weight
- 218542lb
-
Body - Dual Slope
- Body Weight
- 60684lb
-
Optional Engine
- Bore
- 6.7in
- Displacement
- 4211in³
- Engine Model
- Cat® 3516B EUI
- Gross Power
- 1900HP
- Rated Net Power - ISO 9249
- 1791HP
- Stroke
- 7.5in
Equipment
-
- Power Train
-
- Diesel engine/turbocharged/aftercooled:
–Ground level engine shutdown
–Ether starting aid (automatic
– Aftercooler (separate circuit or air to air)
– Elevated low idle control
– Automatic starter protection
– Multi-point all pressure sensing - Braking system:
–Brake release motor (towing)
– Oil-cooled, multi-disc (front and rear)
– (service retarding, parking, secondary)
– Automatic Retarder Control
– Engine overspeed protection
– Extended life brake disc material - Transmission:
– 6-speed, automatic powershift with electronic control (TCC)
– Controlled throttle shifting; Individual clutch modulation
– Body-up shift inhibitor
– Directional shift management
– Downshift/reverse shift inhibitor
– Oil level sensor
– Neutral start switch/coast inhibitor
– Body-up reverse neutralizer
– Programmable top gear
– Lock-up torque converter
– Rear axle continuous lubrication/filtration
- Diesel engine/turbocharged/aftercooled:
-
- Electrical
-
- Alarm, backup
- Alternator, 105 amp
- Batteries, 12V (2), 93 amp-hour
- Converter, 12V electrical
- Electrical system, 24V, 15 amp
- Lighting system:
– Backup and hazard lights; Auxiliary work lights (2) rear, (1) RH side, (1) LH side; Directional signals (front and rear LED)
– Engine compartment lights
– External payload lights
– Headlights with lo-hi beam selector
– Ladder light and service deck lights
– Left-hand ladder/service deck
– Stop/tail lights (LED)
– VIMS, blue light (LED)
-
- Operator Environment
-
- STANDARD CAB:
– Operator seat
–Non-suspension trainer seat
– Flip down front visor
– Standard side of cab access - DELUXE CAB:
– Heated and ventilated operator seat
– Suspension trainer seat
– Retractable front visor
– Rear of cab access and standard side of cab access
– Vacuum, cab clean-out
– Operator Footrest - DELUXE COLD WEATHER CAB:
– Heated and ventilated operator seat
– Suspension trainer seat
– Retractable front visor
– Rear of cab access and standard side of cab access
– Vacuum
–cab clean-out
–Operator Footrest
– Deluxe Diffuser - Air conditioner
- Auxiliary power connection/cigarette lighter
- Diagnostic connection port
- Dome courtesy light
- Entertainment Radio Ready: 5 amp converter, Speakers, Antenna wiring
- Gauges/indicators: Air cleaner service indicator; Quad gauge panel: Air pressure, Brake oil temperature, Engine coolant temperature, Fuel level
- Electric hour meter
- Electric engine control fault indicator
- Engine idle shutdown
- Mirrors, right and left
- Speedometer
- Tachometer
- Transmission gear indicator
- VIMS message center with universal gauge
- VIMS keypad
- Heater/defroster (11 070 kCal/43,930 BTU)
- Horn
- Hoist, body control (electric)
- Integrated object detection system
- ROPS cab, insulated/sound suppressed
- Seatbelt, operator, 75 mm/3" wide
- Seatbelt, trainer, two points
- Stairway and walkway access, 600 mm (24 in)
- Steering wheel, tilt, padded, telescopic
- Window, operator, electric powered
- Windshield wiper, intermittent control and washer
- STANDARD CAB:
-
- Fluids
-
- Extended Life Coolant to -35° C (-30° F)
-
- Other Standard Equipment
-
- Air line dryer
- Auto lubrication system
- Auxiliary “buddy” dumping quick connect
- Auxiliary steering quick connect (towing)
- Body mounting group
- Center mounted rims (6) (29×57) (used for 37.00-R57 tires)
- Driveline guard (fully enclosed)
- Fast fill fuel system
- Ground level VIMS data port
- Ground level battery disconnect
- Rock ejectors
- Supplemental steering (automatic)
- Tie off points
- Tow hooks (front)
- Tow pin (rear)
- Traction Control System
- Vital Information Management System
-
- Body
-
- Dual slope body: Body, dual slope, 109 m3 (142 yd3)
- Dual slope body attachments:
– Extensions, 457 mm (18"), side, DS, 123 m3 (161 yd3)
– Extension, wraparound tail, DS
– Liner, entire body, DS
– Liner, wraparound, DS, 450 BHN
– Rock deflector, rear tire, DS - X body: Body, X, 123 m3 (161 yd3)
- X body attachments: Extensions, side, X, 185 mm (7"), 131 m3 (171 yd3); Extensions, side, X, 385 mm (15"), 138 m3 (181 yd3)
- MSD II body: Body, MSD II, 130 m3 (170 yd3)
- MSD II body attachments:
– Extensions, side, MSD II, 141 m3 (185 yd3)
– Extensions, side, MSD II, 153 m3 (200 yd3) - Combination body: Body, combi, 153 m3 (200 yd3)
- Combination body attachments: Extensions, side, combi, 195 m3 (255 yd3)
- Gateless coal body: Body, gateless coal, 191 m3 (250 yd3)
- Gateless coal body attachments: Extensions, side, coal, 214 m3 (280 yd3); Extensions, side, coal, 237 m3 (310 yd3)
- Body lighting group - rear:
– Directional signals (LED)
– Stop/tail lights (LED)
-
- Electrical
-
- Lockout transmission, ground level
- Auxiliary work lights (1) RH side, (1) LH side
-
- Power Train
-
- Prelube, engine
- Oil renewal system
-
- Filtration Configurations
-
- Rear axle, cooler
-
- Other Attachments
-
- Information management: Control, road analysis (RAC)
- Cold weather: Brake oil, recirculating; Cold weather start
- Service center:
– Service, 3516B, standard volume
– Service, 3516B, large volume
– Service, 3516C, standard volume
– Service, 3516C, large volume
– Service, engine oil, standard - Miscellaneous:
– Fire extinguisher, portable
– Hub odometer, kilometers
– Wheel chocks
– Gauge, brake wear indicator
-
- Antifreeze
-
- Coolant, -50° C (-58° F)
