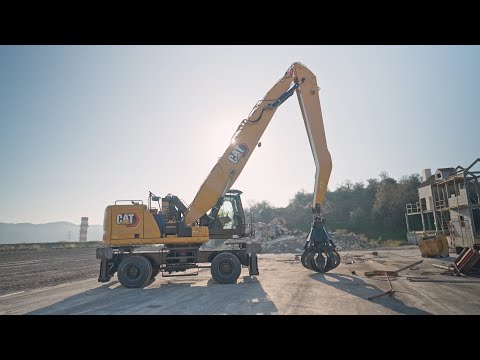

The Cat® MH3032 is a versatile, productive solution in the 30 mt size class. Drop nose and straight stick options along with an optional generator help expand versatility in scrap, waste, and recycling applications. The MH3032 helps maximize performance with its configuration and technology options for optimum production.
A long reach offering helps you move more material without repositioning the machine. Large grapple compatibility allows you to move more material at a time.
Drop nose and straight stick options along with an optional 20 kw generator for magnet operation help expand the MH3032's versatility.
A cushioning hydraulic cab riser helps provide operator comfort and high visibility to the jobsite. Multiple machine access points help improve safety and accessibility.
| Engine Model | Cat® C7.1 |
|---|---|
| Net Power - ISO 9249 | 201 hp |
| Net Power - ISO 9249 (DIN) | 204 hp (metric) |
| Engine Power - Maximum - ISO 14396 | 202 hp |
| Engine Power - ISO 14396 (DIN) | 205 hp (metric) |
| Bore | 4.1 in |
| Stroke | 5.3 in |
| Displacement | 428 in³ |
| Biodiesel Capability | Up to B20¹ |
| Emissions | Meets U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 and Korea Stage V emission standards. |
| Note (1) | Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 2,200 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture. |
| Note (2) | ¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)*** or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. *While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use. **Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. ***Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). |
| Maximum Travel Speed | 11.2 mile/h |
|---|---|
| Drawbar Pull | 32597 lbf |
| Maximum Gradeability | 45% |
| Maximum Pressure - Implements | 5076 psi |
|---|---|
| Maximum Pressure - Swing | 4119 psi |
| Maximum Pressure - Travel | 5076 psi |
| Swing Speed | 7 r/min |
|---|---|
| Maximum Swing Torque | 60680 lbf·ft |
| Operating Weight | 80250 lb |
|---|---|
| Note | Operating weight includes full fuel tank, 75 kg (165 lb) operator and a 2000 kg (4,410 lb) grapple. Weight varies depending on configuration. |
| Fuel Tank Capacity | 125.2 gal (US) |
|---|---|
| Cooling System | 6.6 gal (US) |
| Engine Oil | 6.6 gal (US) |
| Rear Axle - Housing (Differential) | 5.2 gal (US) |
| Final Drive - Each | 0.6 gal (US) |
| Powershift Transmission | 0.8 gal (US) |
| Hydraulic System - Including Tank | 81.9 gal (US) |
| Hydraulic Tank | 38.8 gal (US) |
| Diesel Exhaust Fluid (DEF) Tank | 10.8 gal (US) |
| Boom | MH 8.5 m (27'11") |
|---|---|
| Stick | 6.4 m (21'0") Drop Nose |
| Shipping Length | 38.9 ft |
| Machine Length | 19 ft |
| Tail Swing Radius | 9.8 ft |
| Counterweight Clearance | 4.8 ft |
| Cab Height- Lowered | 11.5 ft |
| Cab Height-Lowered with OPG | 11.6 ft |
| Cab Height-Raised | 20 ft |
| Cab Height-Raised with OPG | 20.2 ft |
| Wheel Base | 10.5 ft |
| Shipping Width | 9.8 ft |
| Ground Clearance | 0.8 ft |
| Undercarriage Length | 19 ft |
| Maximum Reach | 46.2 ft |
|---|---|
| Boom | MH 8.5 m (27'11") |
| Stick | 6.4 m (21'0") Drop Nose |
| Maximum Height | 50.8 ft |
| Minimum Dump Height | 15.3 ft |
| Maximum Depth | 16.4 ft |
| Boom Pin Height | 35.3 ft |
| Note (1) | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. If equipped with R134a (Global Warming Potential = 1430), the system contains 1.2 kg (2.6 lb) of refrigerant which has a CO2 equivalent of 1.716 metric tonnes (1.891 tons). If equipped with R1234yf (Global Warming Potential = 0.5), the system contains 1.05 kg (2.31 lb) of refrigerant which has a CO2 equivalent of 0.001 metric tonnes (0.001 tons). |
|---|
| Recyclability | 94% |
|---|
