Overview

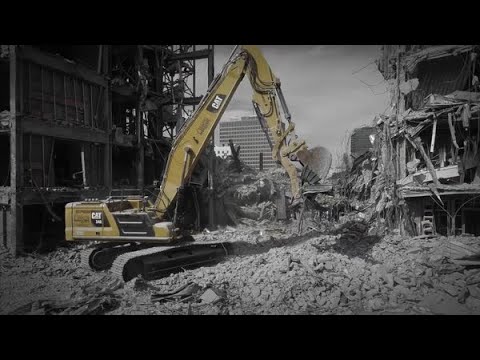

With its new cab, long maintenance intervals, and power system that improves fuel efficiency, the Cat® 340 is the perfect choice for low-level demolition, sorting, and other excavation tasks.
Key Features
More Comfort. More Performance. More Versatility.
High fuel efficiency
Leverage advanced engine and electrohydraulic control to help get more work done.
Improved cab with more comfort and safety
Deluxe cab with ISO-certified ROPS protection makes for a safer, quieter work environment.
Low maintenance costs
Extended maintenance intervals help increase uptime and reduce costs.
Specifications
| Engine Model | C9.3B |
|---|---|
| Net Power - ISO 9249 | 346 hp |
| Net Power - ISO 9249 (DIN) | 351 hp (metric) |
| Engine Power - ISO 14396 | 347 hp |
| Engine Power - ISO 14396 (DIN) | 352 hp (metric) |
| Bore | 5 in |
| Stroke | 6 in |
| Displacement | 568 in³ |
| Biodiesel Capability | Up to B20¹ |
| Emissions | Meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards. |
| Note (1) | Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 1,900 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture. |
| Note (2) | ¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)*** 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. *While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use. ** Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. *** Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). |
| Main System - Maximum Flow | 560 l/min (148 gal/min) |
|---|---|
| Maximum Pressure - Equipment | 5076 psi |
| Maximum Pressure - Equipment - Lift Mode | 5511 psi |
| Maximum Pressure - Travel | 5076 psi |
| Maximum Pressure - Swing | 4264 psi |
| Swing Speed | 8.84 r/min |
|---|---|
| Maximum Swing Torque | 10741 lbf·ft |
| Operating Weight | 87800 lb |
|---|---|
| Note (1) | Long Narrow undercarriage, Straight boom, R3.2DB (10'6") stick, GD 2.27 m³ (2.97 yd³) bucket, 600 mm (24") triple grouser shoes, and 9.0 mt (19,800 lb) counterweight. |
| Fuel Tank Capacity | 158.5 gal (US) |
|---|---|
| Cooling System | 10.5 gal (US) |
| Engine Oil | 8.5 gal (US) |
| Swing Drive | 4.8 gal (US) |
| Final Drive - Each | 2.1 gal (US) |
| Hydraulic System - Including Tank | 98.5 gal (US) |
| Hydraulic Tank | 42.5 gal (US) |
| DEF Tank | 21.1 gal (US) |
| Boom | Straight 6.9 m (22'8") |
|---|---|
| Stick | Reach 3.9 m (12'10") |
| Bucket | GD 2.27 m³ (2.97 yd³) |
| Shipping Height - Top of Cab | 11 ft |
| Cab Height - With OPG | 11.4 ft |
| Shipping Length | 37.3 ft |
| Tail Swing Radius | 11.6 ft |
| Counterweight Clearance | 4.2 ft |
| Ground Clearance | 1.7 ft |
| Track Length | 16.5 ft |
| Track Length to Center of Rollers | 13.3 ft |
| Track Gauge | 8.5 ft |
| Transport Width | 10.8 ft |
| Maximum Pin Height at Stick Nose | 39.4 ft |
|---|---|
| Maximum Weight at Stick Nose | 9170 lb |
| Boom | Straight 6.9 m (22'8") |
| Stick | Reach 3.9 m (12'10") |
| Bucket | GD 2.27 m³ (2.97 yd³) |
| Maximum Digging Depth | 21.8 ft |
| Maximum Reach at Ground Level | 40.5 ft |
| Maximum Cutting Height | 45.2 ft |
| Maximum Loading Height | 33.7 ft |
| Minimum Loading Height | 11 ft |
| Maximum Depth Cut for 2440 mm (8'0") Level Bottom | 21.4 ft |
| Maximum Vertical Wall Digging Depth | 18.5 ft |
| Bucket Digging Force -ISO | 47150 lbf |
| Stick Digging Force - ISO | 32440 lbf |
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. If equipped with R134a (Global Warming Potential = 1430), the system contains 1.000 kg (2.205lb.) of refrigerant, which has a CO2 equivalent of 1.430 metric tonnes (1.576 tons). If equipped with R1234yf (Global Warming Potential = 0.501), the system contains 0.790 kg (1.742 lb.) of refrigerant, which has a CO2 equivalent of 0.001 metric tonnes (0.001 tons). |
|---|
