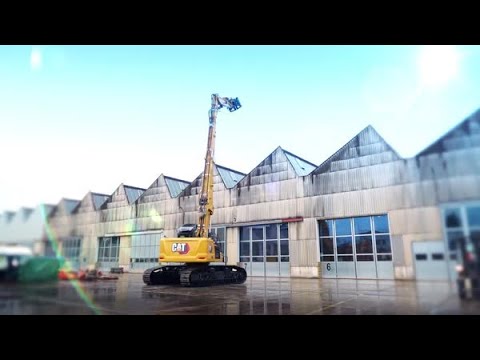

The Cat® 340 UHD provides optimum machine solutions for building demolition up to 8 stories. With its unique coupling system, you can switch between two lengths of Ultra High Demolition fronts and two types of Retrofit booms and sticks with no special tools in 15 minutes. You simply won’t find a better 50-ton class choice for demolition..
Hydraulic quick disconnect requires no tools to swap booms in 15 minutes; choose your front - work up to 22 m with a 3.7 T tool (72 ft with 8,160 lb tool) or up to 25 m with a 3.3 T tool (82 ft with 7,275 lb tool) front or basement to 2 story work and truckloading with Retrofit.
Variable gauge undercarriage provides excellent stability extended and ease of transportation retracted.
Deluxe cab tilts 30 degrees for a more ergonomic operator station includes P5A high resistance glass for safety and premium seat for comfort while 254 mm (10 in) color touchscreen indicates easy to read stability monitoring system information.
| Engine Model | Cat C9.3B |
|---|---|
| Net Power - ISO 9249 | 346 hp |
| Net Power - ISO 9249 (DIN) | 351 hp (metric) |
| Engine Power - ISO 14396 | 347 hp |
| Engine Power - ISO 14396 (DIN) | 352 hp (metric) |
| Bore | 5 in |
| Stroke | 6 in |
| Displacement | 568 in³ |
| Biodiesel Capability | Up to B20¹ |
| Emissions | Meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards. |
| Note (1) | Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 1,900 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture. |
| Note (2) | ¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)*** 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. *While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use. ** Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. *** Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). |
| Main System - Maximum Flow | 560 l/min (148 gal/min) |
|---|---|
| Maximum Pressure - Equipment | 5076 psi |
| Maximum Pressure - Equipment - Lift Mode | 5511 psi |
| Maximum Pressure - Travel | 5076 psi |
| Maximum Pressure - Swing | 4264 psi |
| Swing Speed | 4.09 r/min |
|---|
| Swing Speed | 8 r/min |
|---|---|
| Maximum Swing Torque | 105000 lbf·ft |
| Operating Weight | 122600 lb |
|---|---|
| Note (1) | Hydraulic Variable Gauge undercarriage, 25 m (72'2") UHD front, 600 mm (24") Heavy Duty (HD) triple grouser shoes and 9.0 mt (19,842 lb) counterweight. No work tool. |
| Machine Weight - Retrofit Configuration | 118600 lb |
| Note (2) | Hydraulic Variable Gauge undercarriage, Retrofit boom, R3.2DB (10'6") stick, General Duty (GD) 2.27 m³ (2.97 yd³) bucket, 600 mm (24") HD triple grouser shoes and 9.0 mt (19,842 lb) counterweight. |
| UHD in Cradle | 18700 lb |
| Retrofit Boom in Cradle - R3.9 DB Stick | 13710 lb |
| Retrofit Boom in Cradle - R3.2 DB Stick | 13340 lb |
| Retrofit Boom in Cradle - R2.8 DB Stick | 13120 lb |
| 2-Piece Retrofit Boom in Cradle - R3.2 DB Stick | 17440 lb |
| Fuel Tank Capacity | 158.5 gal (US) |
|---|---|
| Cooling System | 10.5 gal (US) |
| Engine Oil | 8.5 gal (US) |
| Swing Drive | 4.8 gal (US) |
| Final Drive - Each | 2.1 gal (US) |
| Hydraulic System - Including Tank | 145.3 gal (US) |
| Hydraulic Tank | 42.5 gal (US) |
| DEF Tank | 21.1 gal (US) |
| Note (1) | 22 m (72'2") UHD Front |
|---|---|
| Shipping Height - Top of Cab | 11.1 ft |
| Cab Height - With OPG | 11.8 ft |
| Shipping Length | 49.8 ft |
| Tail Swing Radius | 11.6 ft |
| Counterweight Clearance | 4.6 ft |
| Ground Clearance | 1.7 ft |
| Track Length | 18.9 ft |
| Track Length to Center of Rollers | 15.7 ft |
| Working Gauge - Extended Position | 11.2 ft |
| Shipping Gauge - Retracted Position | 7.8 ft |
| Transport Width | 10.7 ft |
| Machine Length - without Front, with Counterweight | 23.3 ft |
| Machine Length - without Front and Counterweight | 22.8 ft |
| Track Width - Extended | 13.1 ft |
| Track Width - Retracted | 9.8 ft |
| Note (2) | 600 mm (24") Track Shoes |
| Maximum Pin Height at Stick Nose | 72.2 ft |
|---|---|
| Maximum Weight at Stick Nose | 8160 lb |
| Maximum Working Pin Height at Stick Nose - 1/2 | 61 ft |
| Maximum Working Reach at Stick Nose - 1/2 | 38.4 ft |
| Maximum Height at Stick Nose in Max Reach Position | 41.5 ft |
| Maximum Reach at Stick Nose | 44.4 ft |
| Note (1) | 22 m (72' 2") UHD Front (Over-the-Front) |
| Note 1 | Straight - R3.2DB m (10' 6") Stick (Over-the-Front) - HVG Undercarriage |
|---|---|
| Bucket | GD 2.27 m³ (2.97 yd³) |
| Maximum Pin Height at Stick Nose | 39.8 ft |
| Maximum Weight at Stick Nose | 9260 lb |
| Maximum Height at Stick Nose in Max Reach Position | 7.6 ft |
| Maximum Reach at Stick Nose | 34.8 ft |
| Maximum Digging Depth | 16.1 ft |
| Maximum Reach - Ground Level | 39.9 ft |
| Maximum Loading Height | 34 ft |
| Minimum Loading Height | 15.8 ft |
| Bucket Digging Force - ISO | 47160 lbf |
| Stick Digging Force - ISO | 37300 lbf |
| Note 1 | Bent - R3.2DB (10'6") Stick - HVG Undercarriage |
|---|---|
| Bucket | GD 2.27 m³ (2.97 yd³) |
| Maximum Digging Depth | 21.4 ft |
| Maximum Reach - Ground Level | 36.7 ft |
| Maximum Cutting Height | 35.4 ft |
| Maximum Loading Height | 24.9 ft |
| Minimum Loading Height | 10.4 ft |
| Bucket Digging Force - ISO | 47160 lbf |
| Stick Digging Force - ISO | 37300 lbf |
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. If equipped with R134a (Global Warming Potential = 1430), the system contains 1.000 kg (2.205lb.) of refrigerant, which has a CO2 equivale of 1.430 metric tonnes (1.576 tons). If equipped with R1234yf (Global Warming Potential = 0.501), the system contains 0.790 kg (1.742 lb.) of refrigerant, which has a CO2 equivalent of 0.001 metric tonnes (0.001 tons). |
|---|
