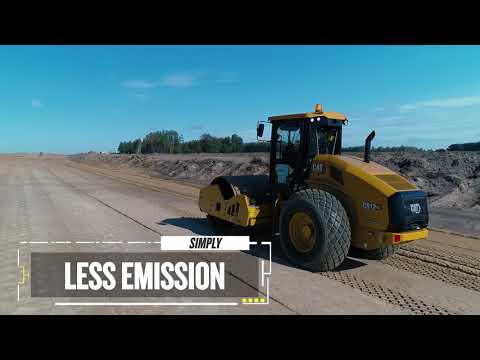

The Cat® CS11 GC Vibratory Soil Compactors bring a balance of easy operation, low operating costs and performance-boosting technology to the jobsite. Using a proven vibratory system designed for high reliability, the CS11 GC smooth drum roller is ideally suited for granular soil applications or cohesive soil applications with the use of an optional padfoot shell kit.
The CS11 GC features an easy-to-use operator interface and excellent visibility to the ground and drum edges. An auto-vibe function helps operators maintain consistency.
Eco-Mode, extended service intervals and a hitch with sealed-for-life bearings that do not require routine maintenance help keep your operating and maintenance costs low.
Compaction technology along with machine features and drum options help you achieve target density in a wide variety of applications.
| Gross Power | 122.9 hp |
|---|---|
| Engine Power - ISO 14396 | 120.7 hp |
| Net Power - ISO 9249 | 112.2 hp |
| Net Power - SAE J1349:2011 | 111.2 hp |
| Note (1) | Net power advertised is the power available at the engine flywheel when equipped with a fan at maximum speed, air cleaner, clean emissions module, and alternator. |
| Engine Model | Cat® C3.6 |
| Emissions | U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, Japan 2014 |
| Stroke | 4.7 in |
| Bore | 3.9 in |
| Operating Weight - With Cab | 24775 lb |
|---|---|
| Operating Weight - With ROPS/FOPS Canopy | 24435 lb |
| Weight - Drum with Cab | 13549 lb |
| Weight - Drum with ROPS/FOPS Canopy | 13453 lb |
| Note (1) | Operating weights are approximate and consider full fluids and 75 kg (165 lb) operator. Cab weights include heat and air conditioning. |
| Nominal Amplitude - High | 0.079 in |
|---|---|
| Nominal Amplitude - Low | 0.039 in |
| Centrifugal Force - Maximum | 56200 lb |
| Centrifugal Force - Minimum | 33500 lb |
| Static Linear Load - With Cab | 161.3 lb/in |
| Static Linear Load - With ROPS/FOPS Canopy | 160.1 lb/in |
| Compaction Width | 84 in |
|---|---|
| Overall Length | 18.7 ft |
| Overall Width | 7.5 ft |
| Maximum Height | 9.9 ft |
| Drum Diameter | 60.4 in |
| Wheel Base | 9.8 ft |
| Ground Clearance | 20.4 in |
|---|---|
| Curb Clearance | 19.4 in |
| Turning Radius - Inside Drum Edge | 12.7 ft |
| Travel Speed - Maximum | 6.8 mile/h |
| Drum Width | 84 in |
| Fuel Tank Capacity | 56.3 gal (US) |
|---|---|
| DEF Tank | 5 gal (US) |
| Cooling System | 4.9 gal (US) |
| Engine Oil - With Filter | 3.1 gal (US) |
| Eccentric Weight Housings (combined) | 6.9 gal (US) |
| Axle and Final Drives | 2.6 gal (US) |
| Hydraulic Tank | 6.1 gal (US) |
| Recyclability | 94% |
|---|
