CP5 Vibratory Soil Compactor

Overview

The Cat^® CP5 sheepsfoot roller is designed for residential and utility applications with cohesive and semi-cohesive soils. Its compact size is ideal for small jobs or working in tight areas like trenches or job sites with limited space.

Key Features

More Comfort. More Performance. More Versatility.

Compact Size

A maneuverable, transportable roller ideally sized for residential and utility applications.

Operator Friendly

Designed for easy operation, comfort and visibility.

Reliable Performance

Durable, field-proven and engineered to provide performance and reliability that contractors can count on.

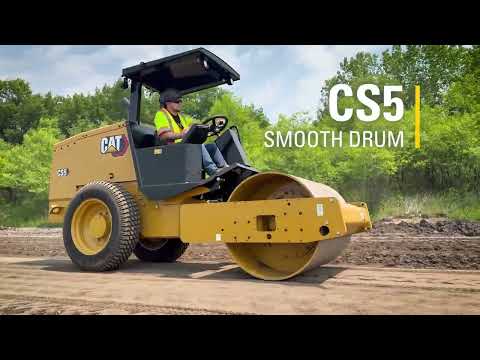

Media Gallery

Specifications

Gross Power	75.8 hp
Engine Power - ISO 14396	74.3 hp
Net Power - ISO 9249	72 hp
Net Power - SAE J1349:2011	72 hp
Engine Model	Cat® C2.8
Emissions	U.S. EPA Tier 4 Final
Build Number	04A
Stroke	4.3 in
Bore	3.5 in
Note (1)	Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (2)	Net power advertised is the power available at the engine flywheel when equipped with a fan at maximum speed, air cleaner, clean emissions module, and alternator.

Operating Weight - With ROPS/FOPS Canopy	10307 lb
Weight - Drum with ROPS/FOPS Canopy	4872 lb
Note (1)	Operating weights are approximate and consider full fluids and 80 kg (176 lb) operator.

Vibratory Frequency - Standard	2150 VPM
Nominal Amplitude - High	0.051 in
Centrifugal Force - Maximum	17535 lb

Fuel Tank Capacity	29.9 gal (US)
Cooling System	4.1 gal (US)
Engine Oil - With Filter	2.2 gal (US)
Eccentric Weight Housings (combined)	14 gal (US)
Axle and Final Drives	1.9 gal (US)
Hydraulic Tank	9.4 gal (US)

Compaction Width	50 in
Overall Length	164 in
Overall Length - With Blade Option	179 in
Overall Width	55 in
Overall Width - With Blade Option	62 in
Maximum Height	99 in
Drum Diameter - Over Pads	40 in
Optional Blade Height	22 in
Wheel Base	88 in
