Cold Planer:

PM822 Cold Planer

PM822 Cold Planer
  • PM822 Cold Planer
  • PM822 Cold Planer
  • PM822 Cold Planer
  • PM822 Cold Planer
Operating Width
10.2 ft
Maximum Truck Clearance
15.94 ft
Maximum Milling Depth
13 in
Milling Width
88 in

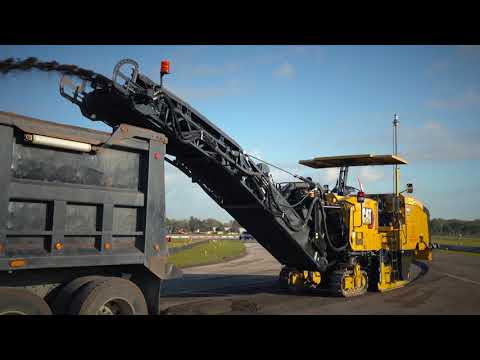

The PM822 is a high-production, half-lane milling machine with a cutting width of 2235 mm (88 in) that performs controlled full-depth removal of asphalt and concrete pavements in a single pass.



Product Specs

  • Dimensions

  • Operating Width
    10.2ft
    Maximum Truck Clearance
    15.94ft
    Conveyor Swing
    60 degrees from center
    Height - Canopy
    13.29ft
    Minimum Left Cutting Radius
    6.56ft
    Minimum Right Cutting Radius
    5.91ft
    Operating Length - Conveyor Up
    47.64ft
    Transport Height
    9.84ft
    Transport Length
    40.78ft
    Transport Width
    8.99ft
  • Cutting System

  • Maximum Milling Depth
    13in
    Milling Width
    88in
    Number of Bits
    193
    Rotor Speeds
    100 / 109 / 118 rpm
  • Power Train

  • Engine
    Cat C18 twin-turbo
    Global Emissions
    Tier 4 Final / Stage IV
    Maximum Milling Speed
    328ft/min
    Maximum Travel Speed
    3.7mile/h
    Rated Power
    800.6HP
  • Service Refill Capacities

  • Cooling System
    27.5gal (US)
    Engine Oil
    17.2gal (US)
    Fuel Tank
    292.7gal (US)
    Hydraulic Tank
    29.9gal (US)
    Water Spray System Tank
    898.2gal (US)
  • Weights

  • Operating Weight
    80910lb
    Transport Weight
    72312lb

Equipment

  • Operator Environment
    • Ground control keypads
    • Single high-resolution LCD touchscreen display
    • 12-volt power receptacle
  • Cat Connect Technology
    • Cat Product Link
    • Cat GRADE
  • Conveyor
    • Grease tensioner
    • Material removal boost feature
  • Rotor System
    • Automatic plunge-cut
    • Automatic transition feature
    • Obstacle jump
    • Three cutting speeds
  • Powertrain
    • Auto engine idle control
    • High capacity cooling system
    • Dual propel pumps
    • Automatic load control
  • Hydraulic System
    • Dual pump hydraulic propel system
    • Traction control
  • Service And Maintenance
    • Sampling ports for Scheduled Oil Sampling (S·O·S℠)
    • Power hood
    • Platform-level engine oil dipsticks
    • Rotor chamber water spray system
    • Air compressor
    • Accessory drive system
    • 3400 L (898 gal) onboard water tank
    • Side water fill valve
  • Safety And Security
    • Platform handrails
    • Signaling/warning horn
    • Wide-dispersion LED work lights
  • Operator Environment
    • Dual high-resolution LCD touchscreen displays
    • Hydraulically folding canopy with LEDs
    • Air-ride suspension seats
    • Windscreens
  • Cat Connect Technology
    • Inboard ski
    • Sonic sensor (averaging or string line)
    • Ground level grade controls and displays
  • Conveyor
    • Dust abatement system
    • Remote camera (loading conveyor)
  • Rotor System
    • System K Rotor - Course (25 mm)
    • System K Rotor - Course (18 mm)
    • System K Rotor - Standard (15 mm)
    • System K Rotor - Fine (8 mm)
    • System K Rotor - Micro (6 mm)
    • System H Rotor - Micro (6x2 mm)
    • Diamond bits
    • Bit bucket trays
    • Pneumatic bit removal tool
    • Tool holder extractor
    • Rotor turning device with pendant control
  • Powertrain
    • CE certificate
  • Hydraulic System
    • Water tank transfer pump
    • Fuel transfer pump
  • Service And Maintenance
    • High pressure washdown
    • Low pressure washdown
    • Additional spray bars
  • Safety And Security
    • Perimeter LED strip lights
    • Magnetic LED work light
    • Warning beacon (fixed or magnetic mount)
    • Truck signal lights
    • Remote camera (rear, front, magnetic mount)
