440 Backhoe Loader

Overview

The Cat^® 440 Backhoe Loader delivers improved machine performance, a superior hydraulic system, improved operator controls and ergonomics, and overall versatility.

Key Features

More Comfort. More Performance. More Versatility.

Advanced Control

The touchscreen display enables customization of machine control for greater precision.

Performance

Excellent lift and breakout forces.

Power

Up to 9% increase in gross power.

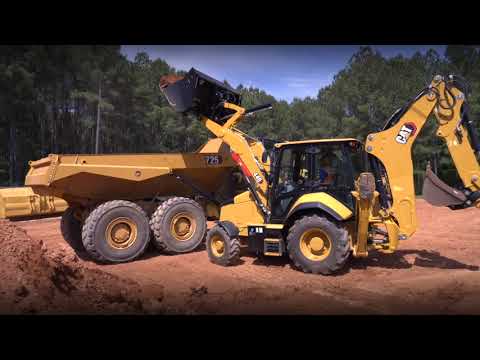

Media Gallery

Specifications

Maximum Gross Power – SAE J1995: 2014	130 hp (97 kW)
Engine Model	C3.6 95 kW (127 hp) Electronic Turbo Intercooled
Gross Power - SAE J1995:2014	130 hp
Gross Power - ISO 14396	127 hp
Net Power Rating at 2,200 rpm - SAE J1349	115 hp
Net Power Rating at 2,200 rpm - ISO 9249	115 hp
Net Peak Power - 2,000 rpm - SAE J1349	118 hp
Net Peak Power - 2,000 rpm - ISO 9249	118 hp
Bore	3.86 in
Stroke	4.7 in
Displacement	220 in³
Net Torque Rise - 1,400 rpm	37%
Net Torque Rise - 1,400 rpm - SAE J1349	377 ft·lbf
Power Rating Conditions - No De-Rating Required Up To	7500 ft
Note	No derating required up to 2286 m (7,500 ft).
Emissions	Engine meets U.S. EPA Tier 4 Final emission standards.

Operating Weight - Maximum	29321 lb
Operating Weight - Estimated*	21848 lb
Operating Weight - Maximum - ROPS Capacity	29321 lb
Counterweight	1102 lb
Cab - ROPS/FOPS	536 lb
Loader Bucket - 1.53 m³ (2.0 yd³) GP (Pin-On)	+80 kg (+176 lb)
Loader Bucket - 1.34 m³ (1.75 yd³) MP HD (Pin-On)	+214 kg (+472 lb)
Loader Bucket - 1.34 m³ (1.75 yd³) MP ED (Pin-On)	+290 kg (+639 lb)
Loader Bucket - 1.34 m³ (1.75 yd³) GP (Hook-On)	+150 kg (+331 lb)
Loader Bucket - 1.53 m³ (2.0 yd³) GP (Hook-On)	+73 kg (+162 lb)
Loader Bucket - 1.34 m³ (1.75 yd³) MP HD (Hook-On)	+85 kg (+187 lb)
Loader Bucket - 1.34 m³ (1.75 yd³) MP ED (Hook-On)	+160 kg (+353 lb)
Loader Quick Coupler	+250 kg (+551 lb)
Backhoe Quick Coupler	+87 kg (+192 lb)
Extendible Stick	+301 kg (+664 lb)
Note (1)	*Machine equipped with 340/80-18 front and 500/70-24 rear, AWD, OROPS, 1.34 m³ (1.75 yd³) general purpose bucket with bolt-on cutting edge, standard stick, 610 mm (24") severe-duty backhoe bucket.
Note (2)	GP = General Purpose
Note (3)	MP = Multi Purpose
Note (4)	HD = Heavy Duty
Note (5)	ED = Extreme Duty

Autoshift Transmission - Forward - 1st	3.7 mile/h
Autoshift Transmission - Forward - 2nd	5.8 mile/h
Autoshift Transmission - Forward - 3rd	7.6 mile/h
Autoshift Transmission - Forward - 4th	12.1 mile/h
Autoshift Transmission - Forward - 5th	16.8 mile/h
Autoshift Transmission - Forward - 6th	24.9 mile/h
Autoshift Transmission - Reverse - 1st	3.7 mile/h
Autoshift Transmission - Reverse - 2nd	7.6 mile/h
Autoshift Transmission - Reverse - 3rd	16.8 mile/h
Note	Travel speeds of backhoe loader in two wheel drive at full throttle, when equipped with 19.5 x 24 rear tires.
Note (1)	*Autoshift Transmission with Lock-Up Clutch

Dig Depth - Standard	15.5 ft

Front Axle, AWD - Static	50565 lb
Front Axle, AWD - Dynamic	20225 lb
Rear Axle - Static	50565 lb
Rear Axle - Dynamic	20225 lb

Type	Closed Center
Pump Type	Variable Flow, Axial Piston
Pump Capacity at 2,200 rpm	58.1 gpm
System Pressure - Backhoe	3800 psi
System Pressure - Loader	3800 psi

Type	Front Wheel
Power Steering	Hydrostatic HMU
Bore	3.35 in
Stroke	9.29 in
Rod Diameter	1.65 in
Axle Oscillation	11°
Turning Circle - AWD (inner wheel not braked) - Outside, Front Wheels	27.33 ft
Turning Circle - AWD (inner wheel not braked) - Outside, Widest Loading Bucket	37.75 ft
Note	AWD cylinder, one (1) double-acting.

Cooling System with Cab Heater	6 gal (US)
Fuel Tank	42.3 gal (US)
Engine Oil - With Filter	2.4 gal (US)
Diesel Exhaust Fluid (DEF)	5 gal (US)
Transmission (Autoshift) - AWD, Autoshift	4.8 gal (US)
Rear Axle (Center Housing)	4.4 gal (US)
Front Axle (Center Housing)	2.9 gal (US)
Planetaries	0.2 gal (US)
Hydraulic System	28.6 gal (US)
Hydraulic Tank (Nominal)	11.1 gal (US)
