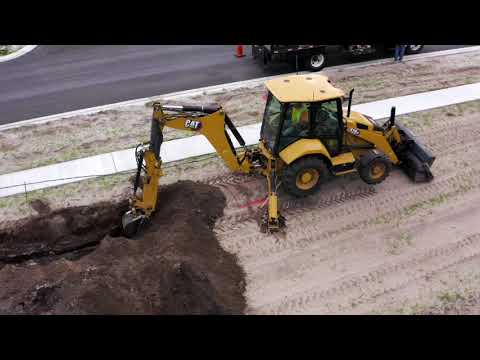

OPERATOR EXPERIENCE
• Seat Mounted Controls improve Operator Comfort & Ergonomics
• NEW LCD Operator Display with Touchscreen Control Improves User Interface
• Effortlessly Shift Gears with the Powershift Transmission
• SAHR Parking Brake for Peace of Mind.
UP TO 15% MORE PERFORMANCE
• NEW Cat® C3.6 provides 10%+ more Fuel Efficiency Selectable Parallel Lift ensures Material Retention when Loading • Up to 15% more Boom Lift Performance • Operator Control Modes provide More Response, More Speed, More Torque • Electronic Loader Controls enable Programmable Loader Kickout & Return to Dig
IMPROVED MACHINE UTILIZATION
IT Loader Coupler
• Change Attachments for various applications with a touch of a button
> Pallet Forks
> Material Handling Arms
> Snow Pushes
UP TO 10% LESS CO2 EMISSIONS
The 420 XE emits up to 10% less CO2 than the previous 420F2 IT.
Specifications
| Net Power - SAE J1349 | 92 HP (68 kW) / 103 HP (76 kW) |
|---|---|
| Displacement | 220 in³ |
| Engine Model | C3.6 74.5 kW (100 hp) Electronic Turbo Intercooled |
| Net Power Rating at 2,200 rpm - ISO 9249 | 91 hp |
| Power Rating Conditions - No De-Rating Required Up To | 10000 ft |
| Net Torque Rise - 1,400 rpm - SAE J1349 | 47% |
| Ratings at 2,200 rpm - Gross Power SAE J1995 | 102 hp |
| Ratings at 2,200 rpm - Gross Power ISO 14396 | 100 hp |
| Net Power Rating at 2,200 rpm - SAE J1349 | 92 hp |
| Net Torque Rise - 1,400 rpm - SAE J1349 | 322 ft-lb |
| Emissions | Engine meets Tier 4 Final/Stage V emission standards. |
| Net Peak Power - 1,800 rpm - ISO 9249 | 105 hp |
| Dimensions - Bore | 3.86 in |
| Dimensions - Stroke | 4.72 in |
| Net Peak Power Rating @ 1,800 rpm - SAE J1349 | 105 hp |
| Operating Weight - Maximum | 24251 lb |
|---|---|
| Cab - ROPS/FOPS | 320 lb |
| Ride Control | 33 lb |
| Air Conditioning | 99 lb |
| Note | Machine configuration: standard stick hoe, OROPS canopy, AWD power shift transmission, 0.96 m³ (1.25 yd³) GP (General Purpose) loader bucket, 610 mm (24 in) standard duty hoe bucket, front 340/80-18 and rear 500/70-24 tires, 240 kg (530 lb) counterweight, 80 kg (176 lb) operator, full fuel tank. |
| MP Bucket (0.96 m3/1.25 yd3) - With Fold-Over Forks | 2017 lb |
| Operating Weight - Maximum - ROPS Capacity | 24251 lb |
| MP Bucket (0.96 m3/1.25 yd3) - Without Fold-Over Forks | 1642 lb |
| Counterweights, base - Stackable, one | 529 lb |
| Power-Shift Transmission | STD |
| Extendible Stick (excludes ft. counterweight) | 595 lb |
| Counterweights, base - Maximum | 1014 lb |
| Counterweights, base | 256 lb |
| Loader QC | 540 lb |
| All-Wheel Drive | STD |
| Operating Weight (estimated) | 17271 lb |
| Dig Depth - Standard | 14 ft |
|---|
| Power-Shift Transmission with LTC - Optional - Forward - 2nd | 5.8 mile/h |
|---|---|
| Power-Shift Transmission with LTC - Optional - Forward - 6th LTC* | 25 mile/h |
| Power-Shift Transmission with LTC - Optional - Forward - 5th LTC | 18 mile/h |
| Power Shift Transmission - Standard - Forward - 3rd | 12 mile/h |
| Power Shift Transmission - Standard - Reverse - 2nd | 7.7 mile/h |
| Power-Shift Transmission with LTC - Optional - Reverse - 3rd | 17 mile/h |
| Power-Shift Transmission - Optional - Forward - 2nd | 5.8 mile/h |
| Power-Shift Transmission - Optional - Reverse - 1st | 3.7 mile/h |
| Power-Shift Transmission with LTC - Optional - Forward - 4th | 12 mile/h |
| Power Shift Transmission - Standard - Forward - 1st | 3.7 mile/h |
| Power-Shift Transmission with LTC - Optional - Forward - 5th | 17 mile/h |
| Power-Shift Transmission - Optional - Reverse - 2nd | 7.7 mile/h |
| Power-Shift Transmission with LTC - Optional - Reverse - 1st | 3.7 mile/h |
| Power-Shift Transmission with LTC - Optional - Forward - 1st | 3.7 mile/h |
| Power-Shift Transmission - Optional - Reverse - 3rd | 17 mile/h |
| Power Shift Transmission - Standard - Reverse - 1st | 3.7 mile/h |
| Power-Shift Transmission - Optional - Forward - 3rd | 8 mile/h |
| Power Shift Transmission - Standard - Reverse - 3rd | 17 mile/h |
| Power-Shift Transmission with LTC - Optional - Forward - 6th | 25 mile/h |
| Power Shift Transmission - Standard - Forward - 4th | 25 mile/h |
| Power Shift Transmission - Standard - Forward - 2nd | 5.8 mile/h |
| Power-Shift Transmission with LTC - Optional - Forward - 3rd | 8 mile/h |
| Power-Shift Transmission with LTC - Optional - Reverse - 2nd | 7.7 mile/h |
| Power-Shift Transmission - Optional - Forward - 6th | 25 mile/h |
| Power-Shift Transmission - Optional - Forward - 4th | 12 mile/h |
| Power-Shift Transmission - Optional - Forward - 5th | 17 mile/h |
| Power-Shift Transmission - Optional - Forward -1st | 3.7 mile/h |
| Note (2) | *Limited by engine speed to 40 km/h (25 mph). |
| Note (1) | Travel speeds of two wheel drive backhoe loader at full throttle, when equipped with 500/70-24 rear tires. |
| Rear Axle - Dynamic | 22046 lb |
|---|---|
| Front Axle, AWD - Dynamic | 19841 lb |
| Front Axle, AWD - Static | 51808 lb |
| Rear Axle - Static | 58422 lb |
| Pump Type | Variable-flow, Axial Piston |
|---|---|
| System Pressure - Loader | 3626 psi |
| Pump Capacity at 2,200 rpm | 49.4 gpm |
| System Pressure - Backhoe | 3626 psi |
| Type | Closed Center |
| Bore | 2.6 in |
|---|---|
| Turning Circle - (inner wheel not braked) - Outside Front Wheels | 26.92 ft |
| Turning Circle - (inner wheel not braked) - Outside Widest Loader Bucket | 35.25 ft |
| Power Steering | Hydrostatic |
| Rod Diameter | 1.6 in |
| Type | Front Wheel Steering |
| Stroke | 4.2 in |
| Axle Oscillation | 11° |
| Cylinder | One Double-Acting |
| Fuel Tank | 42.3 gal (US) |
|---|---|
| Engine Oil - With Filter | 2.4 gal (US) |
| Hydraulic Tank | 11.1 gal (US) |
| Hydraulic System | 25.1 gal (US) |
| Cooling System with Air Conditioning | 4.8 gal (US) |
| Rear Axle | 4.2 gal (US) |
| Diesel Exhaust Fluid (DEF) | 5 gal (US) |
| Rear Axle - Planetaries | 0.4 gal (US) |
| Transmission - Power Shift - AWD | 5 gal (US) |
| Transmission - Power Shuttle - AWD | 4.8 gal (US) |
| Front Axle (AWD) - Planetaries | 0.2 gal (US) |
| Front Axle (AWD) | 2.9 gal (US) |
